Industrial Digital Ultrasonic Generator
SIWEEP Industrial Digital Ultrasonic Generators provide reliable ultrasonic power control for ultrasonic cleaning systems, cleaning tanks, and immersible ultrasonic transducer plates. Designed for industrial parts cleaning, equipment upgrades, and custom ultrasonic cleaning applications, these digital generators deliver stable output, precise frequency control, and efficient cavitation performance for a wide range of cleaning requirements.
Available in multiple frequency options including 28kHz, 40kHz, 68kHz, 100kHz, and 120kHz, SIWEEP ultrasonic generators can be matched with different ultrasonic transducers to achieve the ideal balance between cleaning power and precision. Lower frequencies provide stronger cavitation for removing heavy oil, grease, carbon deposits, and industrial contaminants, while higher frequencies generate finer cavitation bubbles for delicate and precision cleaning applications.
Advanced Digital Frequency Tracking & Power Control
Equipped with modern MCU/DSP digital technology, the ultrasonic generator automatically tracks the resonant frequency of connected ultrasonic transducers to maintain stable operating conditions. The system continuously adjusts output parameters according to load changes, helping improve cleaning consistency and protect ultrasonic transducer performance during long-term operation.
Flexible Power Adjustment & Easy Operation
The integrated digital control interface allows users to adjust ultrasonic power, operating time, and cleaning parameters with ease. Adjustable power output provides flexibility for different tank sizes, cleaning solutions, and component requirements. The generator is suitable for standalone ultrasonic cleaners, retrofit projects, and custom-built ultrasonic cleaning systems.
Industrial Compatibility & System Integration
SIWEEP digital ultrasonic generators are designed to work with immersible ultrasonic transducer plates, ultrasonic cleaning tanks, and OEM cleaning equipment. Optional communication interfaces such as RS485 and PLC integration are available for automated production environments.
Wide Applications
These ultrasonic generators are widely used for:
- Automotive parts cleaning
- Metal component cleaning
- Mold and tooling cleaning
- Precision machinery cleaning
- Electronics and small component cleaning
- Laboratory and industrial cleaning systems
With multiple frequency and power configurations available, SIWEEP Industrial Digital Ultrasonic Generators provide a flexible solution for building, upgrading, and maintaining professional ultrasonic cleaning systems.

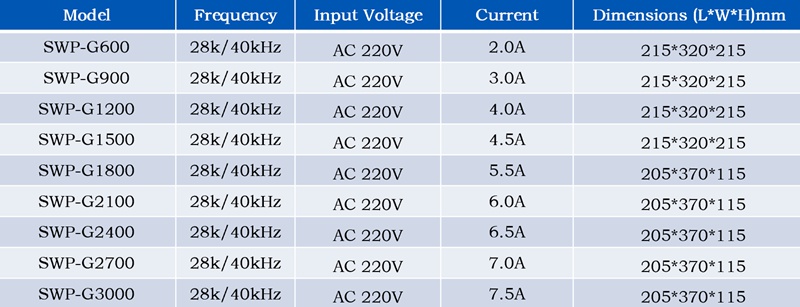

🔹Digital Ultrasonic Generator Technical Specifications
🔹Key Features of Digital Ultrasonic Generator
- Automatic Frequency Tracking
Advanced MCU/DSP digital control automatically tracks the resonant frequency of connected ultrasonic transducers, maintaining stable ultrasonic output without manual adjustment and improving cleaning consistency. - Adjustable Digital Power Control
The ultrasonic power output can be adjusted from 10% to 100%, allowing users to optimize cleaning intensity for different applications, from heavy-duty industrial parts to precision components. - Frequency Sweep Function
The built-in frequency sweep mode helps distribute ultrasonic energy more evenly throughout the cleaning tank, reducing uneven cleaning areas and improving overall cleaning performance. - PLC & RS485 Communication Support
Designed for industrial integration, the generator supports optional RS485 communication and PLC control for automated cleaning systems and production line applications. - Multiple Protection Functions
Integrated protection features including over-current, over-temperature, short-circuit, and abnormal frequency detection help ensure reliable operation and protect both the generator and connected ultrasonic transducers. - Clear Digital Display & Easy Operation
The user-friendly digital interface allows convenient monitoring and adjustment of ultrasonic frequency, power output, operating time, and system status.
🔹Applications & System Compatibility
SIWEEP Digital Ultrasonic Generators are designed to provide stable ultrasonic power for ultrasonic transducers, cleaning tanks, and industrial ultrasonic cleaning systems. Suitable for both new equipment builds and retrofit projects, these generators help manufacturers and system integrators create reliable cleaning solutions for a wide range of industrial applications.
- Automotive Parts Cleaning
Provides consistent ultrasonic power for large cleaning tanks used to remove grease, oil, carbon deposits, and contaminants from engine components, transmission parts, fuel system components, and other automotive parts. - Electroplating & Surface Treatment
Delivers stable ultrasonic energy for pre-cleaning processes, helping remove oil, grease, oxides, and surface contaminants before plating, coating, and finishing operations. - Electronics & Precision Component Cleaning
High-frequency options including 68kHz, 100kHz, and 120kHz provide gentle yet effective cleaning performance for electronic components, PCBs, precision parts, and delicate substrates where fine particle removal is required. - Medical & Laboratory Equipment Cleaning
Supports precision cleaning applications for medical instruments, laboratory components, and other sensitive parts requiring controlled ultrasonic cleaning processes. - Industrial Manufacturing & OEM Systems
Compatible with immersible ultrasonic transducer plates, ultrasonic cleaning tanks, and custom cleaning equipment used in manufacturing, maintenance, and automated production environments.
🔹What is in the Secure Packaging?
- 1 x High-Performance Digital Ultrasonic Generator
- 1 x Heavy-Duty Industrial Power Cable
- 1 x Signal Connection Plug (For PLC / Remote Connection)
- 1 x Detailed Professional User & Wiring Manual
🔹Why Choose SIWEEP Digital Ultrasonic Generators?
- Stable Ultrasonic Power Output
Advanced digital control technology helps maintain consistent ultrasonic output under changing load conditions, providing reliable cleaning performance and stable cavitation during operation. - Designed for Industrial Operation
Built with efficient heat dissipation design and cooling protection systems, SIWEEP ultrasonic generators are engineered for reliable performance in demanding industrial cleaning environments. - Wide Transducer Compatibility
Compatible with a wide range of piezoelectric ultrasonic transducers and immersible ultrasonic transducer plates. Available frequency options from 28kHz to 120kHz support different applications, from heavy-duty parts cleaning to precision cleaning. - Reliable Factory Support
SIWEEP provides professional ultrasonic cleaning components with consistent manufacturing quality, flexible configuration options, competitive pricing, and support for OEM and custom cleaning system projects.
🔹Frequently Asked Questions
Q1: What is the advantage of a digital ultrasonic generator compared with an analog generator?
A: Digital ultrasonic generators use advanced control technology to automatically track the operating frequency of connected ultrasonic transducers. Unlike traditional analog generators that may require manual adjustment, digital control helps maintain stable ultrasonic output when operating conditions change, improving cleaning consistency and protecting the transducer system.
Q2: Can this ultrasonic generator replace my existing ultrasonic cleaning tank power supply?
A: Yes. The generator can be used as a replacement or upgrade for existing ultrasonic cleaning systems, provided that the frequency, power rating, and transducer specifications match your current setup. SIWEEP generators are compatible with various ultrasonic transducers and immersible ultrasonic transducer plates.
Q3: What is the frequency sweep function used for?
A: The frequency sweep function continuously varies the ultrasonic operating frequency within a controlled range. This helps distribute ultrasonic energy more evenly throughout the cleaning tank, improving cleaning uniformity and reducing uneven cleaning areas.
Q4: Does the ultrasonic generator support PLC and RS485 control?
A: Yes. Selected SIWEEP ultrasonic generators support RS485 communication and external PLC control for integration with automated cleaning systems and industrial production equipment.
Q5: How do I choose the correct frequency for my ultrasonic generator?
A: The generator frequency should match the frequency of your ultrasonic transducers. Lower frequencies such as 28kHz and 40kHz are commonly used for industrial parts cleaning and heavy contamination removal, while higher frequencies such as 68kHz, 100kHz, and 120kHz are suitable for precision cleaning applications.
🔹Warranty Policy
SIWEEP warrants that all Digital Ultrasonic Generators are free from defects in materials and workmanship under normal use and proper installation.
Warranty Coverage
- 12-month limited warranty from the date of delivery.
- Covers manufacturing defects under normal operating conditions.
- Free replacement parts or product replacement (at SIWEEP’s discretion) for confirmed warranty issues.
Warranty Does Not Cover
The warranty does not apply to damage caused by:
- Improper installation or wiring
- Incorrect voltage or power supply
- Frequency mismatch between the generator and ultrasonic transducers
- Unauthorized modifications or repairs
- Physical damage, water damage, or misuse
- Normal wear and consumable components
Technical Support
If you experience any issues, please contact our technical support team with:
- Order number
- Product model
- Photos or videos of the issue
- Description of the operating conditions
Our engineers will assist with troubleshooting and provide the appropriate solution.
Shipping
For approved warranty claims:
- Replacement parts will be provided free of charge.
- Customers may be responsible for shipping costs depending on the warranty case and destination.
- SIWEEP will provide replacement or repair solutions based on the product condition.
These FAQs should help you get the most out of your equipment and ensure you’re using it safely and effectively. If you have specific questions about your model, always refer to the Ultrasonic Generator User Manual or contact the manufacturer for additional guidance.
