Industrial Immersible Ultrasonic Transducer Plates (28kHz / 40kHz)
The Industrial Immersible Ultrasonic Transducer Plates (also known as ultrasonic submersible boxes) provide a highly flexible, cost-effective solution for upgrading existing tanks into high-performance ultrasonic cleaning systems. Engineered for seamless retrofitting, these heavy-duty sealed plate packs deliver powerful cavitation directly into your custom setups, ensuring maximum cleaning efficiency for everything from precision lab tools to massive industrial components.
Built to endure rigorous professional environments, our immersible transducer plates support 24/7 continuous operation under heavy industrial workloads. Constructed from premium, corrosion-resistant stainless steel, they are available in either 28kHz for aggressive, heavy-duty soil and rust stripping, or 40kHz for high-precision, delicate rinsing. The specialized array arrangement guarantees high-density ultrasonic wave generation that effortlessly penetrates blind holes, intricate crevices, and complex geometries.

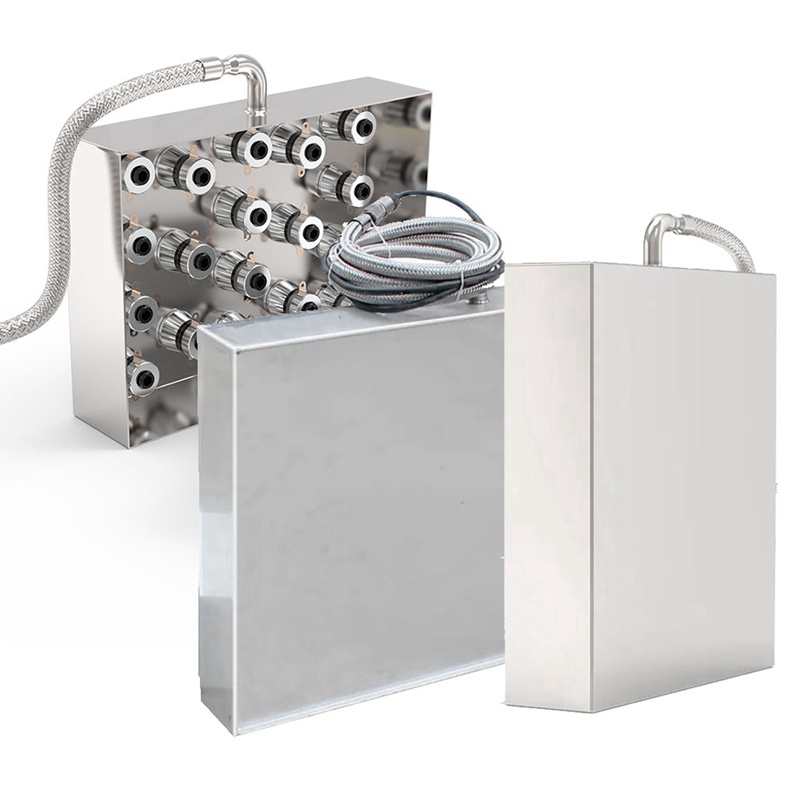

Heavy-Duty Seal Construction & Flexible Mounting: Each plate pack is fully enclosed and vacuum-tested with advanced seamless laser welding to eliminate leak risks under high pressure and temperature. Depending on your tank geometry, these versatile submersible transducer boxes can be flexibly mounted to the tank bottom, sidewalls, or even suspended, allowing you to maximize your existing workspace without purchasing entirely new machinery.
The entire series features premium piezoelectric transducers with high mechanical Q-factors, ensuring exceptionally high electro-acoustic conversion efficiency and stable power output up to 80°C/176°F. Built to optimize modern workshop automation, these vibrating plates can be paired with our smart digital generators to support standard industrial PLC control for automated production lines.
Factory direct supply with stable premium quality, highly competitive wholesale pricing, and fast global shipping for industrial system integrators, electroplating lines, and automotive remanufacturing workshops.

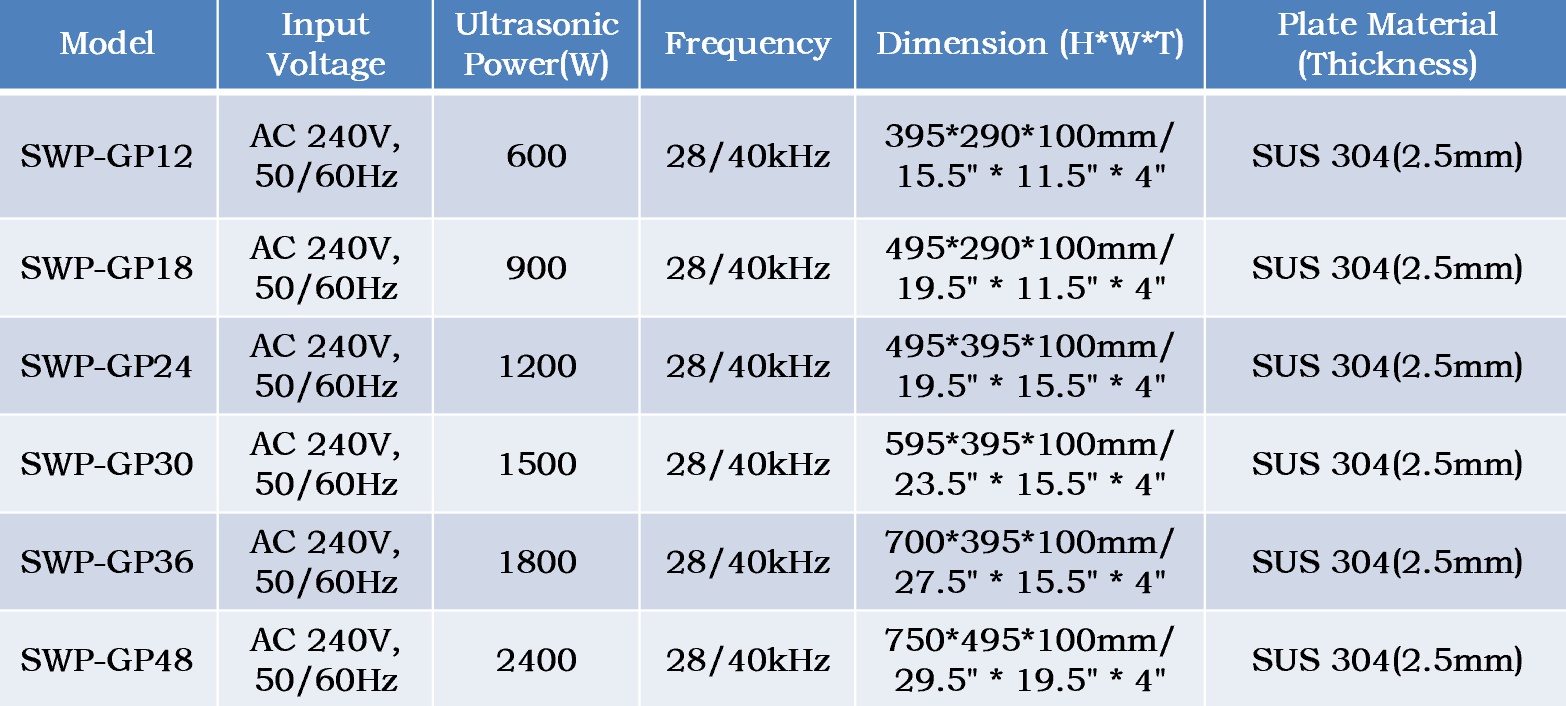

🔹 Immersible Ultrasonic Transducer Plates Technical Specifications
🔹 Key Features of Submersible Ultrasonic Transducer Box
- Premium SUS316L / Titanium Construction: Heavy-duty, thickened plates with hard chrome plating options offer excellent resistance against severe cavitation erosion and acidic/alkaline chemicals.
- Dual-Frequency Flexibility (28kHz / 40kHz): Available in specialized 28kHz specifications for aggressive grease and carbon blasting, or 40kHz for high-precision, non-abrasive delicate rinsing.
- 100% Waterproof Laser Welding: Fully sealed enclosure using automatic robotic laser welding, vacuum-tested to guarantee zero fluid penetration during long-term immersion.
- Versatile Installation Methods: Can be customized for bottom-mounting, wall-mounting, or top-hook suspension to fit any existing tank layout.
- Industrial-Grade Duty Cycles: Equipped with premium industrial transducers that ensure uniform wave distribution and stable, high-efficiency performance under 24/7 continuous loads.
- Custom Sizes & Rigid Conduits: Available in tailor-made dimensions and flexible stainless steel hoses or rigid pipe conduits to match custom liquid depths.
🔹 Applications & System Compatibility
The Immersible Ultrasonic Transducer Plates are the perfect modular retrofitting solution to introduce ultrasonic power into standard manufacturing tanks. They are widely utilized across various industrial fields:
- Electroplating & Surface Treatment: Installed inside chemical tanks to thoroughly strip grease, oxides, and scale before plating, ensuring flawless surface adhesion.
- Automotive Component Maintenance: Retrofitted into large soaking vats to blast away baked-on carbon, heavy oils, and deposits from engine blocks and gearboxes.
- Industrial Machinery Hardware: Cleans large molds, manufacturing dies, bearings, and precision hardware to extend tool life and optimize efficiency.
- Aerospace & Electronics Production: Provides uniform cavitation to remove microscopic flux residue, contaminants, and fine dust from complex geometries.
🔹 What is in the Secure Packaging?
- 1 x Industrial Immersible Ultrasonic Transducer Plate (Selected Dimensions & Frequency)

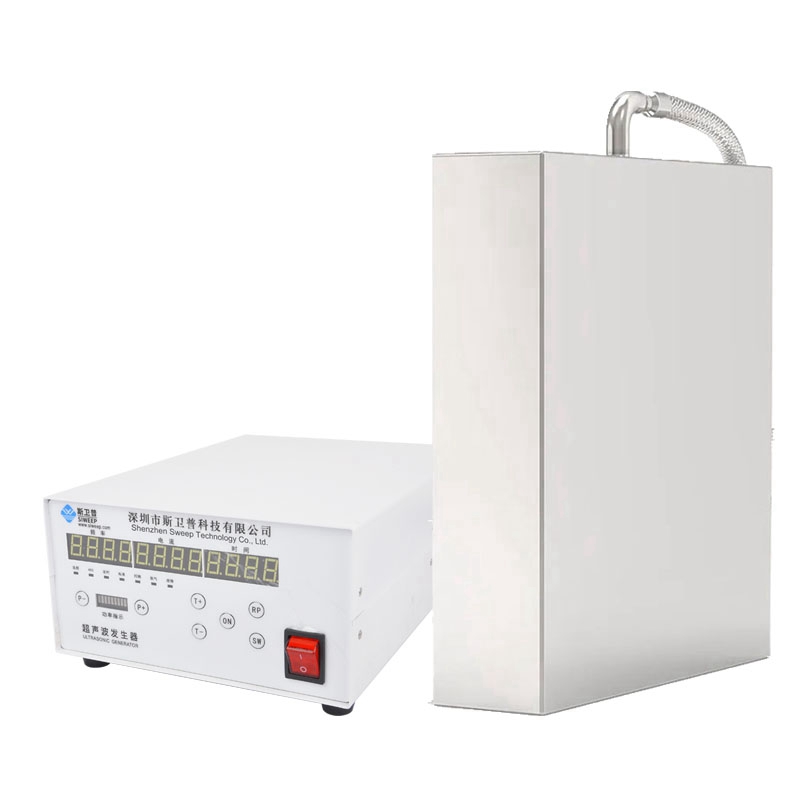

- 1 x Matching High-Performance Smart Digital Ultrasonic Generator (Power Supply Box)
- 1 x Heavy-Duty Industrial Power Cable
- 1 x Detailed Professional User & Wiring Manual (Step-by-Step Installation Guide)
🔹 Why Choose SIWEEP Immersible Ultrasonic Transducer Plates?
- Cost-Saving Retrofit: No need to invest in expensive new cleaning machinery. Simply drop our submersible vibrating boxes into your current tanks to instantly get industrial-grade ultrasonic power.
- Thickened Cavitation Surfaces: We use ultra-thick SUS316L stainless steel treated with special surface hard-chroming to drastically resist pitting erosion, outlasting standard plates.
- Optimized Transducer Array Layout: Engineered with calculated spacing to completely eliminate acoustic dead spots, delivering even and powerful scrubbing waves across the whole tank.
- Direct Factory Backing: Enjoy stable professional quality, custom engineering support, highly competitive wholesale pricing, and prompt global delivery.
🔹 Frequently Asked Questions
Q1: What is the main advantage of choosing immersible plates over standard built-in transducer tanks?
A: Flexibility and easy maintenance. If you already have a production line vat, immersible plates allow you to add ultrasonic functions instantly without altering your structure. Furthermore, if maintenance is required, you can simply lift the modular plate pack out without stopping or draining the entire system.
Q2: Can these submersible plates resist strong acids or corrosive chemicals?
A: Our standard plates are constructed from premium SUS316L, which performs excellently in mild acidic and alkaline cleaning solvents. For extremely aggressive chemicals or pickling lines, we provide specialized Titanium alloy plates or extra-thick Teflon coating options to ensure ultimate durability.
Q3: How do I choose between a bottom-mount or wall-mount setup?
A: Bottom-mounting is ideal for general cleaning as the cavitation waves travel upward, treating all parts evenly. However, if your parts accumulate heavy sludge or debris that settles on the bottom, wall-mounting (side-mount) is recommended to prevent dirt from burying the plate surfaces and muffled the ultrasonic output.
Q4: Do these immersible transducer plates include the power generator?
A: This specific product webpage is for the modular immersible transducer plates and integrated cables only. To drive these plates, you will need a matching smart digital ultrasonic generator, which can be purchased together as a bundle from our store.
Q5: Can you custom-build plates to fit my specific tank dimensions?
A: Yes, customization is our strength. We can tailor the plate dimensions, wattage, frequency, and cable outlet style (rigid tube or flexible hose) to perfectly match your current tank configuration and production line requirements.
These FAQs should help you get the most out of your equipment and ensure you’re using it safely and effectively. If you have specific questions about your model, always refer to the Ultrasonic Generator User Manual or contact the manufacturer for additional guidance.
