Industrial Ultrasonic Generator
The Industrial Ultrasonic Generator from SIWEEP delivers reliable and efficient ultrasonic power for industrial cleaning applications. With multiple frequency options including 20kHz, 28kHz, 40kHz, 68kHz, and 120kHz and power ratings from 500W to 3000W, this digital ultrasonic power supply is designed to drive ultrasonic transducers with stable output, automatic frequency tracking, and long-term operating reliability.
🔹Digital Ultrasonic Generator Technical Specifications
🔹Key Features of Industrial Ultrasonic Generator
- Wide Frequency & Power Options
Available in multiple frequency ranges from 20kHz to 120kHz and power ratings from 500W to 3000W, providing flexible solutions for different ultrasonic cleaning and processing applications. - Digital Control Interface

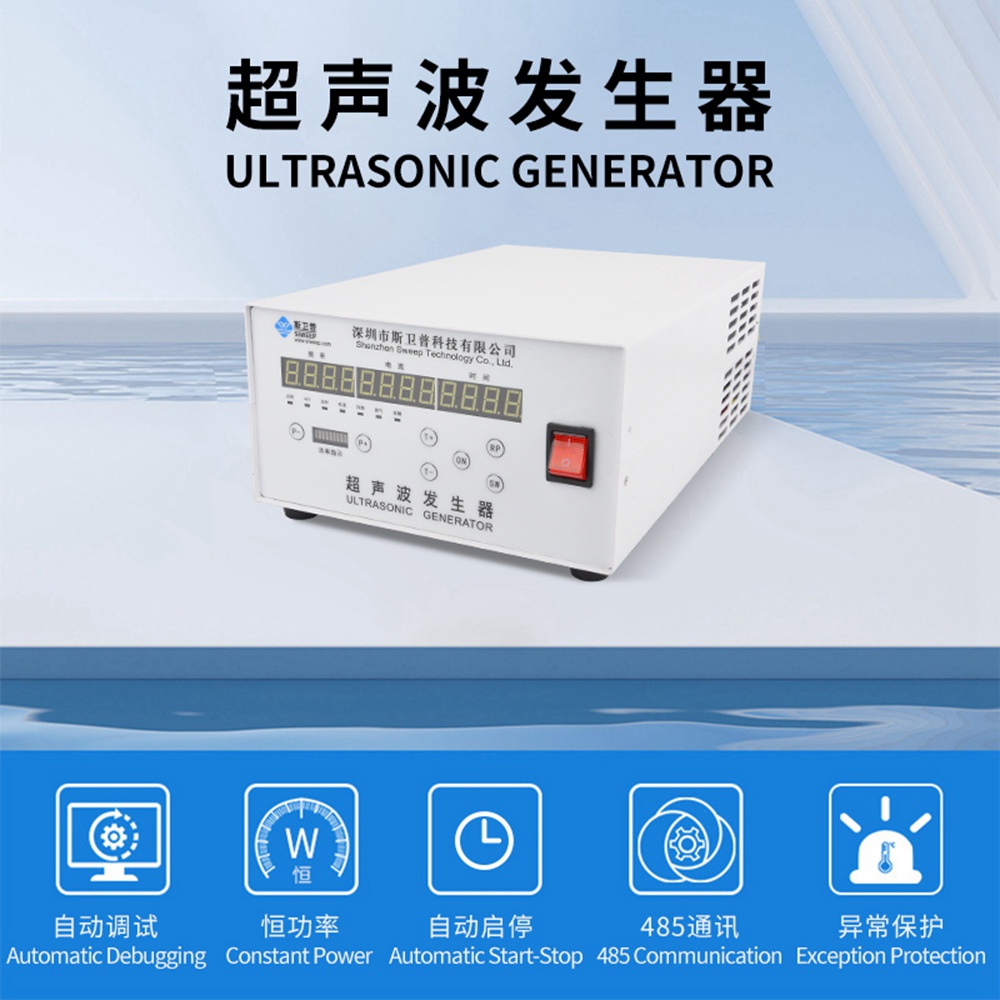

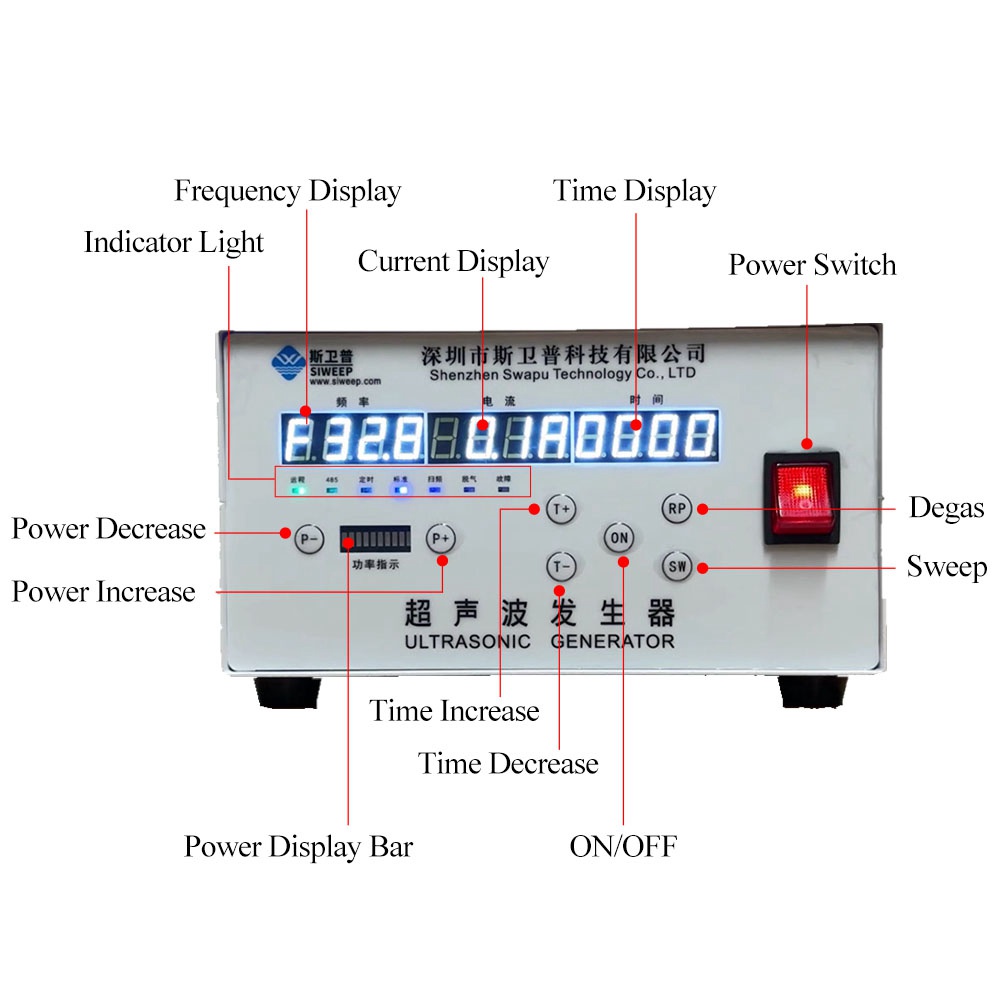

Features a digital control system for convenient parameter setting, power adjustment, and real-time operating status monitoring. - Stable Ultrasonic Power Output
Delivers consistent ultrasonic energy with reliable output performance for industrial cleaning systems and continuous operation. - Compatible with Various Ultrasonic Transducers
Designed to operate with different ultrasonic transducers, including immersion transducers, ultrasonic plates, and customized ultrasonic cleaning systems. - Adjustable Power Control
Allows users to adjust ultrasonic output power according to different cleaning requirements, workpiece sizes, and operating conditions. - Industrial-Grade Construction

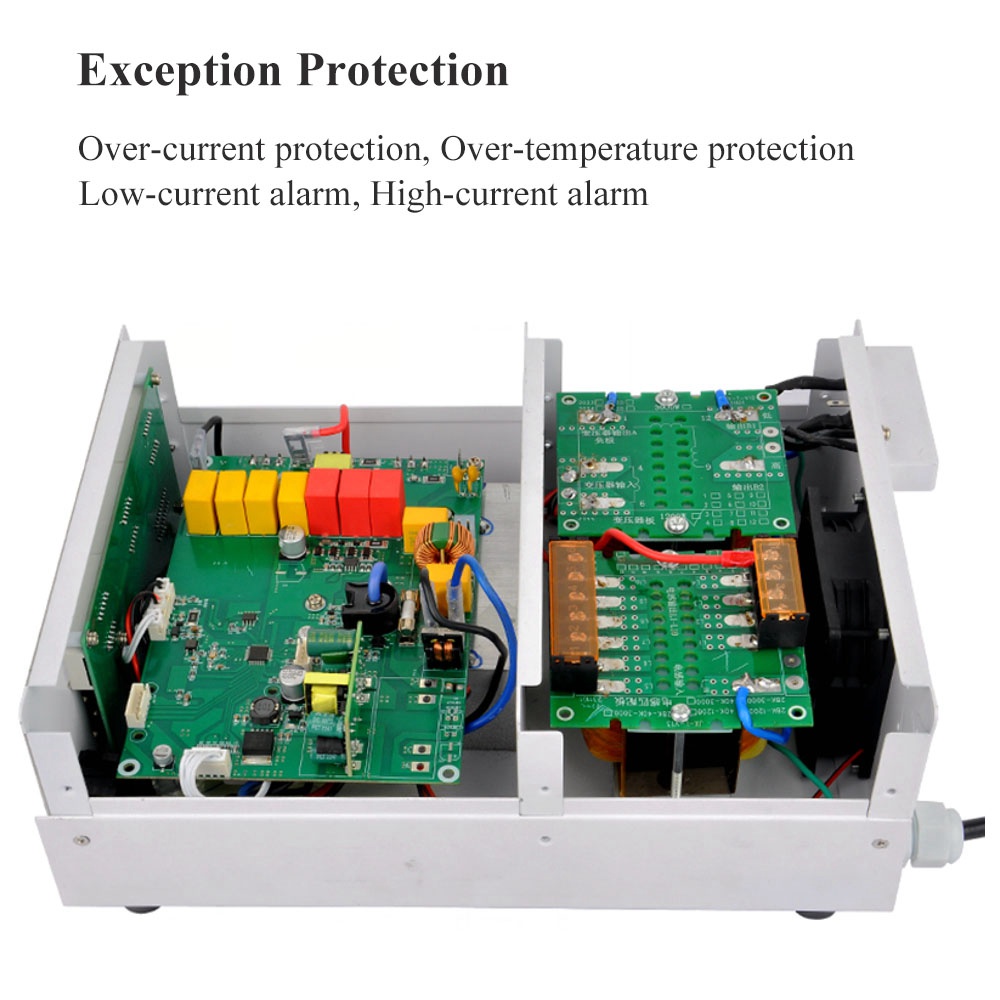

Built with durable components and protection functions to support reliable performance in demanding industrial environments.
🔹Applications & System Compatibility
SIWEEP Industrial Ultrasonic Generators are designed for a wide range of ultrasonic cleaning and processing systems. With multiple frequency and power options, they can be integrated into different industrial applications requiring reliable ultrasonic energy output.
Applications
- Industrial Parts Cleaning: Suitable for cleaning metal parts, automotive components, machinery parts, and precision components in manufacturing environments.
- Precision Component Cleaning: Ideal for applications requiring gentle and effective cleaning, including electronics, optical components, and small precision parts.
- Immersion Ultrasonic Cleaning Systems: Works with immersible ultrasonic transducers and ultrasonic plates for custom-built cleaning tanks and automated cleaning systems.
- Laboratory & Research Applications: Provides stable ultrasonic power for laboratory equipment, material processing, and research applications.
- Custom Ultrasonic Processing Systems: Suitable for OEM equipment manufacturers and custom ultrasonic systems requiring specific frequency and power configurations.
System Compatibility
SIWEEP Industrial Ultrasonic Generators are compatible with various ultrasonic components, including:
- Immersible Ultrasonic Transducer Rods
- Immersible Ultrasonic Transducer Plates
- Ultrasonic Cleaning Tanks
- Custom Ultrasonic Transducer Assemblies
- Industrial Ultrasonic Cleaning Equipment
Available frequency options include 20kHz, 25kHz, 28kHz, 33kHz, 40kHz, 68kHz, 80kHz, 100kHz, and 120kHz, with power ratings from 500W to 3000W to support different system requirements.
🔹What is included?
- 1 x High-Performance Industrial Ultrasonic Generator
- 1 x Heavy-Duty Industrial Power Cable
- 1 x Signal Connection Plug (For PLC / Remote Connection)
- 1 x Detailed Professional User Manual
🔹Why Choose SIWEEP Industrial Ultrasonic Generators?
- Stable Ultrasonic Power Output
Advanced digital control technology helps maintain consistent ultrasonic output under changing load conditions, providing reliable cleaning performance and stable cavitation during operation. - Designed for Industrial Operation
Built with efficient heat dissipation design and cooling protection systems, SIWEEP ultrasonic generators are engineered for reliable performance in demanding industrial cleaning environments. - Wide Transducer Compatibility
Compatible with a wide range of piezoelectric ultrasonic transducers and immersible ultrasonic transducer plates. Available frequency options from 28kHz to 120kHz support different applications, from heavy-duty parts cleaning to precision cleaning. - Reliable Factory Support
SIWEEP provides professional ultrasonic cleaning components with consistent manufacturing quality, flexible configuration options, competitive pricing, and support for OEM and custom cleaning system projects.
🔹How to Choose the Right Generator Power
Selecting the correct ultrasonic generator power comes down to one core rule: always ensure a healthy safety margin rather than underpowering your system.
When matching your generator, the output power should be at least 20% higher than the total rated power of your piezoelectric transducers (Generator Power >= Total Transducer Power x 1.2). This ensures the power supply runs stably and maintains a long lifespan under continuous, heavy-duty workloads.
Additionally, consider your specific cleaning application and power density:
- Standard & Precision Parts (Light to Medium Soil): A power density of around 0.3W/cm² is ideal for general components, electronics, and lab glassware.
- Industrial & Heavy-Duty Parts (Stubborn Oil, Carbon, & Grime): For engine blocks, heavy molds, and tough industrial contaminants, scale up the power density to 0.6W/cm² or higher to ensure the cavitation intensity is strong enough to thoroughly strip away stubborn residues without straining your equipment.
🔹Frequently Asked Questions
Q1: What is an industrial ultrasonic generator?
A: An industrial ultrasonic generator is an ultrasonic power supply that converts electrical energy into high-frequency electrical signals to drive ultrasonic transducers. It provides controlled ultrasonic power for industrial cleaning systems and custom ultrasonic applications.
Q2: What frequency options are available for SIWEEP ultrasonic generators?
A: SIWEEP ultrasonic generators are available in multiple frequency options, including 20kHz, 25kHz, 28kHz, 33kHz, 40kHz, 68kHz, 80kHz, 100kHz, and 120kHz. Different frequencies are suitable for different cleaning requirements, from heavy-duty industrial cleaning to precision cleaning applications.
Q3: What power ratings are available for industrial ultrasonic generators?
A: Our industrial ultrasonic generators are available with power outputs from 500W to 3000W, including 500W, 600W, 900W, 1000W, 1200W, 1500W, 2000W, 2500W, and 3000W models.
Q4: How do I choose the right ultrasonic generator power?
A: The required power depends on the size of the cleaning system, the number of ultrasonic transducers, tank volume, and cleaning requirements. Higher power models are typically used for larger tanks, heavier contamination, and continuous industrial operation.
Q5: Can this ultrasonic generator work with immersion ultrasonic transducers?
A: Yes. SIWEEP ultrasonic generators are designed to work with various ultrasonic transducers, including immersion ultrasonic transducer rods, plates, and custom ultrasonic cleaning assemblies.
Q6: What is the difference between 28kHz and 40kHz ultrasonic generators?
A: A 28kHz ultrasonic generator provides stronger cavitation and is commonly used for industrial parts cleaning and removing heavy contamination. A 40kHz ultrasonic generator produces smaller cavitation bubbles and is often preferred for precision cleaning of smaller or more delicate components.
Q7: Can the ultrasonic generator output power be adjusted?
A: Yes. The output power can be adjusted according to different cleaning requirements, workpiece conditions, and system configurations.
Q8: Do ultrasonic generators require matching with transducers?
A: Yes. Proper matching between the ultrasonic generator and transducer is important for stable operation and efficient ultrasonic performance. SIWEEP can provide compatible generator and transducer solutions for different applications.
🔹Warranty Policy
SIWEEP warrants that all Digital Ultrasonic Generators are free from defects in materials and workmanship under normal use and proper installation.
Warranty Coverage
- 12-month limited warranty from the date of delivery.
- Covers manufacturing defects under normal operating conditions.
- Free replacement parts or product replacement for confirmed warranty issues.
Technical Support
If you experience any issues, please contact our technical support team with:
- Order number
- Product model
- Photos or videos of the issue
- Description of the operating conditions
Our engineers will assist with troubleshooting and provide the appropriate solution.
These FAQs should help you get the most out of your equipment and ensure you’re using it safely and effectively. If you have specific questions about your model, always refer to the Ultrasonic Generator User Manual or contact the manufacturer for additional guidance.
