Industrial Ultrasonic Homogenizer for Liquid Processing

Industrial Ultrasonic Homogenizer Overview

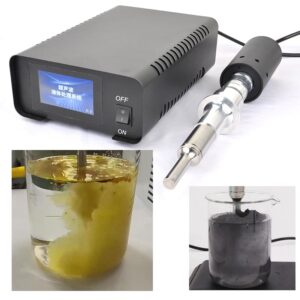

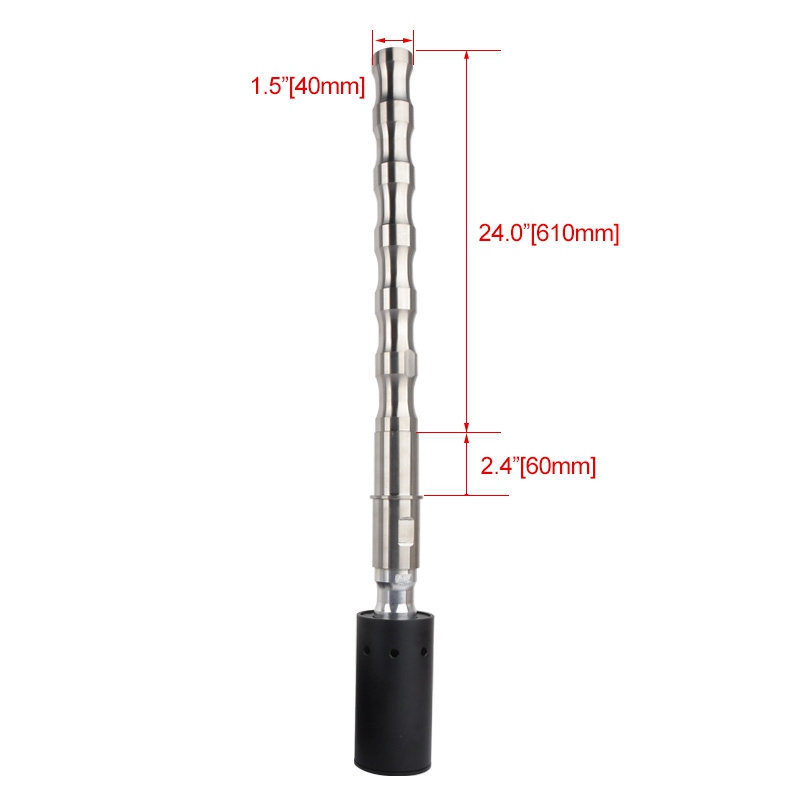

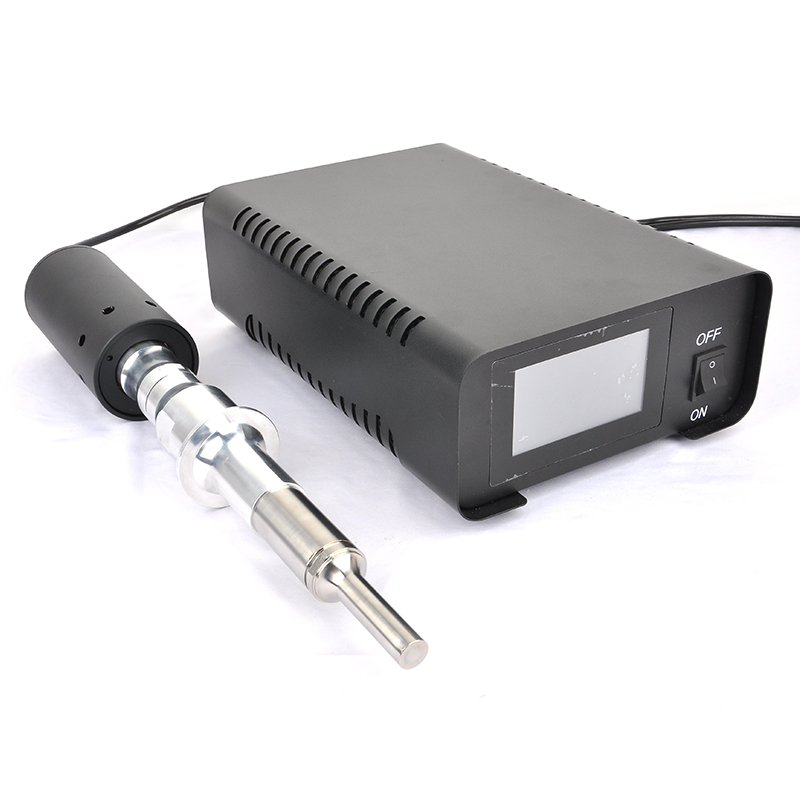

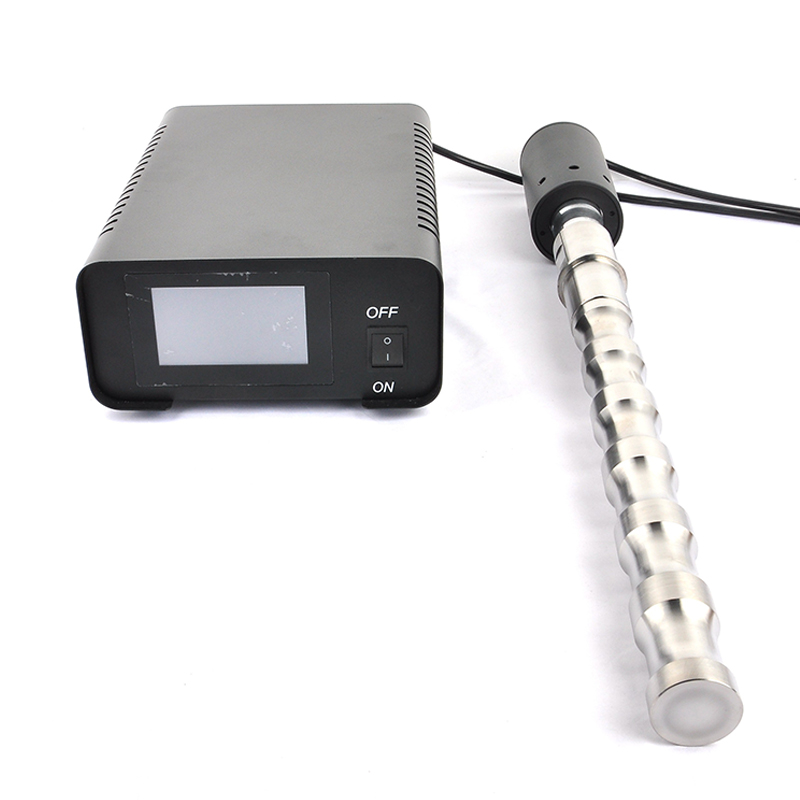

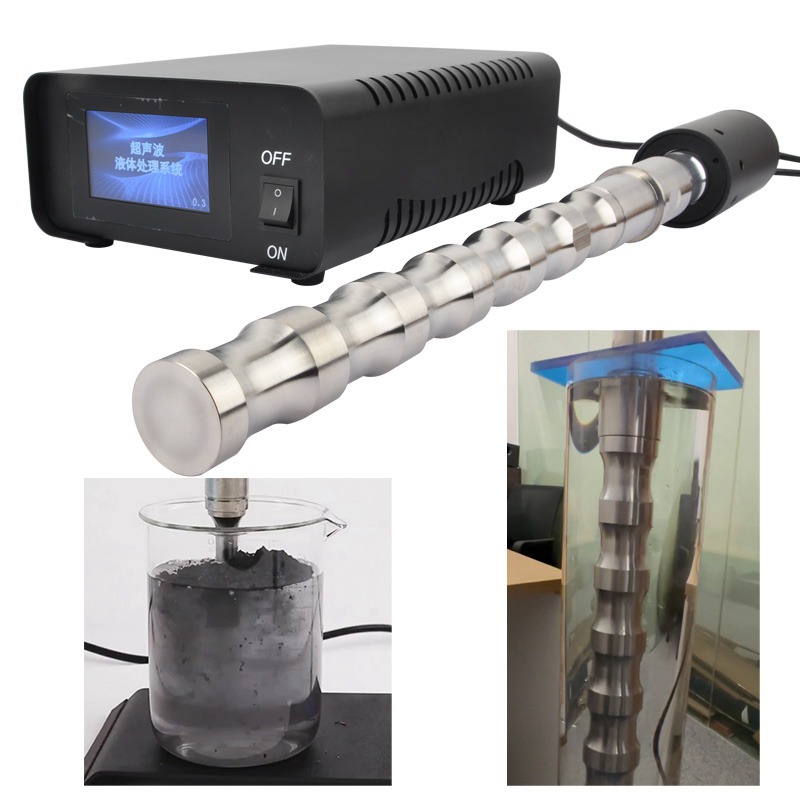

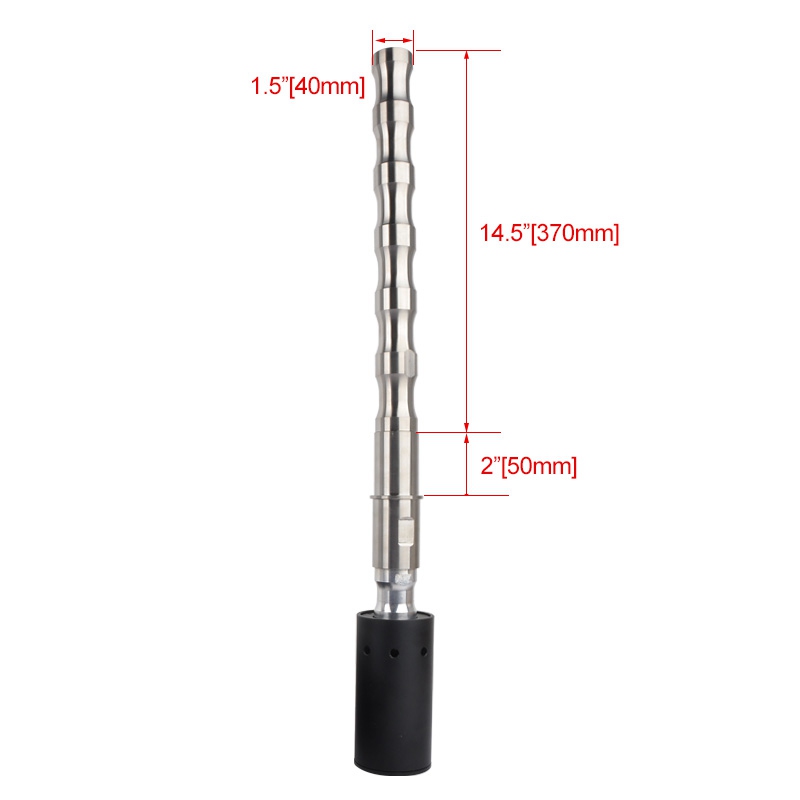

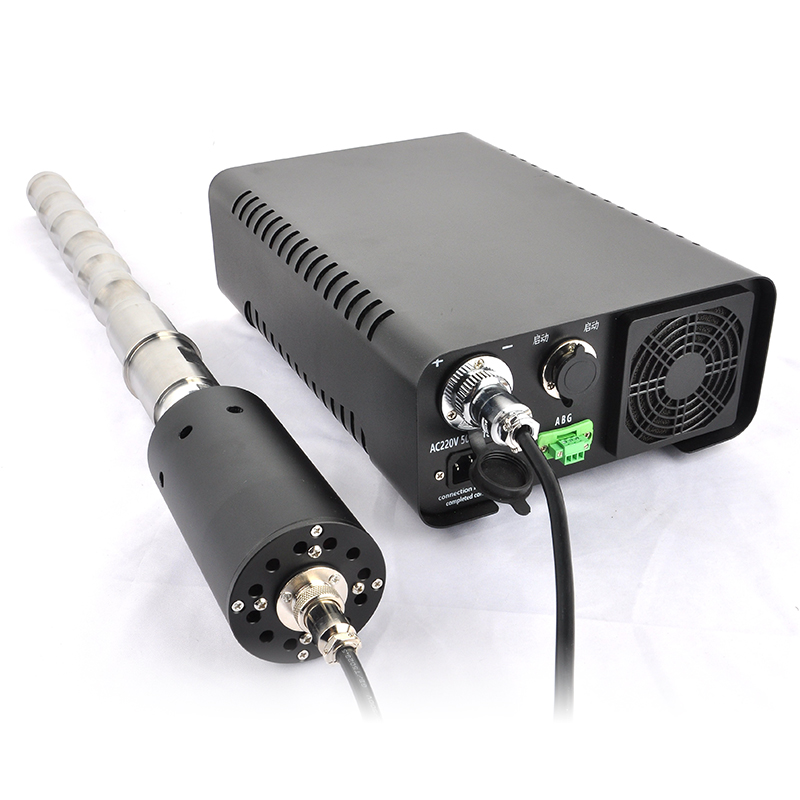

The Industrial Ultrasonic Homogenizer is a high-power ultrasonic processing system designed for demanding liquid processing, dispersion, emulsification, homogenization, mixing, and extraction applications. Equipped with a titanium alloy probe and digital ultrasonic generator, it delivers high-intensity ultrasonic cavitation for pilot-scale and industrial production.

Available in 1000W, 1500W, 2000W, and 3000W models, this industrial ultrasonic system provides flexible power options for different processing volumes, material characteristics, and production requirements. It is suitable for applications in chemical, pharmaceutical, food and beverage, cosmetics, biotechnology, materials, and other industrial processing fields.

As an Industrial Ultrasonic Processor and high-power liquid processor, the system can be integrated with processing tanks, reactors, circulation systems, and customized production equipment. Different probe sizes and processing configurations are available for specific industrial requirements.

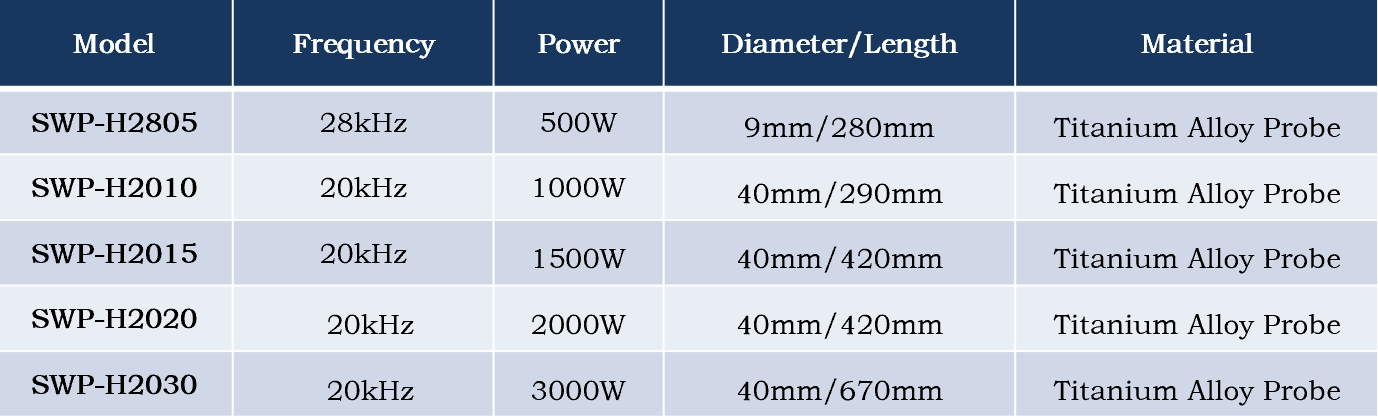

Technical Specifications

Key Features

• High-Power Ultrasonic Processing – Delivers intense ultrasonic energy for demanding industrial liquid processing and material processing applications.
• Efficient Material Dispersion – Helps break up particle agglomerates and improve the distribution and uniformity of powders, pigments, nanoparticles, and other materials in liquids.
• Powerful Ultrasonic Emulsification – High-intensity cavitation helps reduce droplet size and promote more uniform liquid-liquid emulsions.
• High-Intensity Homogenization – Improves the consistency and uniformity of liquids, suspensions, emulsions, and other process materials.
• Enhanced Mixing and Mass Transfer – Ultrasonic cavitation improves interaction between components and can enhance mixing and mass transfer during processing.
• Industrial System Integration – Suitable for processing tanks, reactors, circulation systems, flow-through systems, and customized ultrasonic processing equipment.
• Multiple Power Options – Available in 1000W, 1500W, 2000W, and 3000W configurations for different processing volumes and production requirements.

Applications

The Industrial Ultrasonic Homogenizer is designed for high-power liquid processing in pilot-scale and industrial production environments. As an Industrial Ultrasonic Processor, it provides concentrated ultrasonic energy for a wide range of material processing applications.

• Ultrasonic Dispersion – Helps disperse powders, pigments, nanoparticles, and other solid materials uniformly in liquids.
• Ultrasonic Emulsification – Uses acoustic cavitation to reduce droplet size and improve the uniformity of oil-water and other liquid-liquid emulsions.
• Industrial Homogenization – Produces more uniform mixtures and consistent formulations for industrial liquid processing.
• Industrial Mixing – Enhances mixing and interaction between different liquid and suspended components.
• Particle Size Reduction – Helps break up agglomerates and improve the dispersion of fine particles in liquid media.
• Ultrasonic Extraction – Ultrasonic energy can assist in extracting target compounds and active substances from suitable materials.
• Continuous Liquid Processing – Can be integrated into circulation and flow-through systems for suitable continuous processing applications.

Industry Applications

• Chemical Processing – Dispersion, homogenization, emulsification, mixing, and ultrasonic-assisted processing.
• Pharmaceutical Processing – Extraction, dispersion, homogenization, emulsification, and formulation development.
• Food and Beverage – Emulsification, homogenization, dispersion, and liquid processing.
• Cosmetics – Emulsion preparation, dispersion, homogenization, and particle refinement.
• Materials Science – Nanoparticle, pigment, graphene, and composite material dispersion.
• Biotechnology – Ultrasonic processing, extraction, homogenization, and other liquid processing applications.

How Does an Industrial Ultrasonic Homogenizer Work?

The ultrasonic generator supplies electrical energy to the ultrasonic transducer. The transducer converts the electrical signal into high-frequency mechanical vibrations, which are transferred through the titanium alloy probe into the liquid or process material.

The ultrasonic vibrations generate acoustic cavitation in the liquid. Microscopic bubbles rapidly form and collapse, producing localized high-intensity forces that help break up particles and droplets, improve mixing, enhance mass transfer, and accelerate various ultrasonic processing operations.

Electrical Energy → Ultrasonic Vibration → Acoustic Cavitation → Dispersion / Emulsification / Homogenization

How to Choose the Right Power

Selecting the appropriate power for an Industrial Ultrasonic Processor depends on processing volume, material viscosity, desired processing intensity, and production requirements. Higher-power models provide stronger ultrasonic energy for larger volumes and more demanding applications.

• 1000W – Suitable for smaller industrial batches, pilot-scale processing, and lower-volume applications.
• 1500W–2000W – Suitable for medium-volume processing and applications requiring higher ultrasonic intensity.
• 3000W – Designed for larger-volume and more demanding industrial ultrasonic processing applications.

For applications involving high viscosity, large processing volumes, continuous production, or specialized materials, the ultrasonic power, probe configuration, and processing system should be selected according to the specific process requirements.

Warranty Policy

SIWEEP Industrial Ultrasonic Homogenizers are backed by a limited warranty:

• Generator & Converter: 1-Year Limited Warranty
• Titanium Alloy Probe: 6-Month Limited Warranty (Consumable)

The titanium alloy probe is a wear component, and its service life depends on material properties, processing conditions, and operating methods. Warranty coverage excludes misuse, dry running, and unauthorized modifications.

Frequently Asked Questions

For detailed operating instructions and technical information, please refer to the Industrial Ultrasonic Homogenizer User Manual.

Need a Custom Solution?

If you require a customized Industrial Ultrasonic Homogenizer for a specific application, processing volume, power level, frequency, probe size, installation method, or other technical requirement, please contact SIWEEP at [email protected]. Our team can help configure a suitable ultrasonic processing solution for your application.
