Industrial Piezoelectric Ultrasonic Transducers

Industrial Ultrasonic Transducers Overview

Industrial Piezoelectric Ultrasonic Transducers convert electrical energy into high-frequency mechanical vibrations for ultrasonic cleaning and industrial processing systems. Designed for reliable ultrasonic energy transmission, these transducers can be integrated into custom ultrasonic equipment, cleaning tanks, processing systems, and other industrial applications.

Multiple configurations are available to accommodate different frequencies, power requirements, installation methods, and system designs. The transducers can be used as replacement components or incorporated into new ultrasonic systems.

🔹Technical Specifications

🔹Key Features of SIWEEP Ultrasonic Transducers

• High-Efficiency Piezoelectric Ceramic Elements
  Premium piezoelectric ceramic materials provide excellent electromechanical conversion efficiency, allowing the transducer to generate strong and stable ultrasonic vibrations.

• Stable Ultrasonic Output Performance
  Precision manufacturing ensures consistent frequency response and reliable operation for continuous industrial cleaning applications.

• Durable Industrial Construction
  Built with corrosion-resistant materials and designed for long-term operation in demanding production environments.

• Strong Cavitation Generation
  Optimized vibration characteristics help create uniform cavitation bubbles for effective cleaning performance.

🔹Applications of Industrial Ultrasonic Transducers

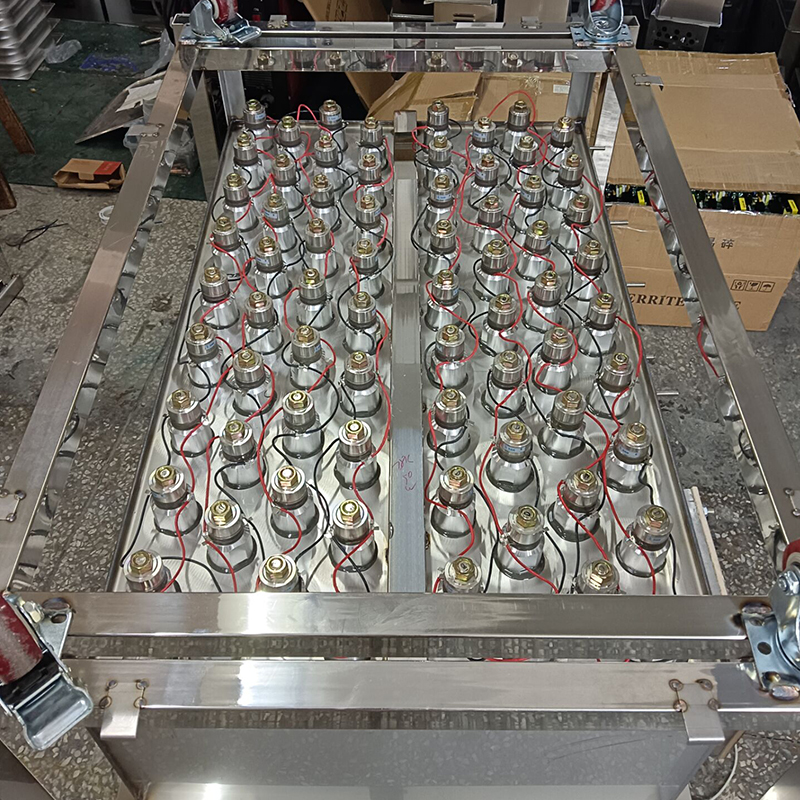

• Ultrasonic Cleaning Systems
  These transducers can be integrated into ultrasonic cleaning equipment to generate acoustic energy in cleaning tanks and improve the removal of contaminants from parts and components.
• Industrial Cleaning Equipment
  Suitable for custom-built ultrasonic cleaning machines, automated cleaning lines, and industrial parts-cleaning systems.
• Tank Retrofit
  Can be used to replace damaged or aging transducers or upgrade existing cleaning systems with new ultrasonic components.
• Custom Ultrasonic Systems
  Suitable for integration into customized ultrasonic equipment according to required frequency, power, tank dimensions, and installation configuration.
• Industrial Ultrasonic Processing
  The transducers can also be incorporated into ultrasonic processing systems for applications such as liquid processing, dispersion, emulsification, and other ultrasonic-assisted processes.

🔹Ultrasonic Transducer Types Available

• Immersible Ultrasonic Transducers
  Designed for retrofit and custom ultrasonic cleaning systems, immersible transducers can be installed directly into existing tanks to upgrade ultrasonic cleaning performance.
• Ultrasonic Transducer Plates
  Plate-style transducers provide efficient ultrasonic power transmission and are commonly used in industrial cleaning tanks requiring large-area coverage.
• Custom Ultrasonic Transducer Solutions
  SIWEEP provides customized ultrasonic transducer solutions based on tank size, power requirements, frequency selection, and cleaning applications.

🔹How Do Ultrasonic Transducers Work?

An ultrasonic transducer converts electrical energy from an ultrasonic generator into mechanical vibration.

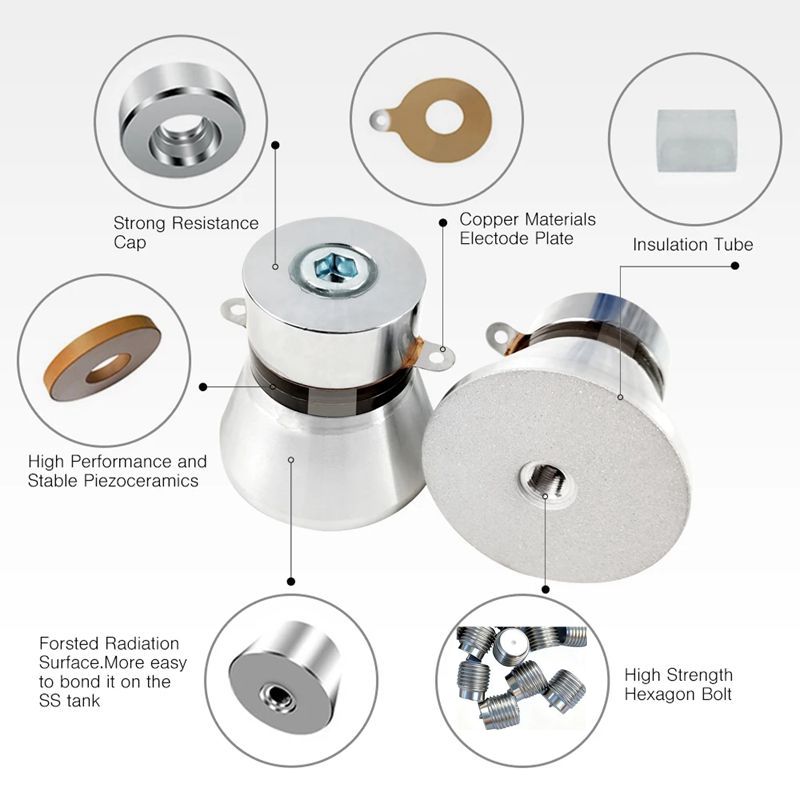

The piezoelectric elements inside the transducer expand and contract when an alternating electrical signal is applied. These mechanical vibrations are transferred to the transducer housing and then into the surrounding medium, generating ultrasonic waves.
In ultrasonic cleaning systems, these waves create acoustic cavitation, which helps remove contaminants from surfaces and internal areas.
Ultrasonic Generator → Piezoelectric Elements → Mechanical Vibration → Ultrasonic Waves → Cavitation

🔹What is included?

• 1 × Piezoelectric Ultrasonic Transducer Assembly

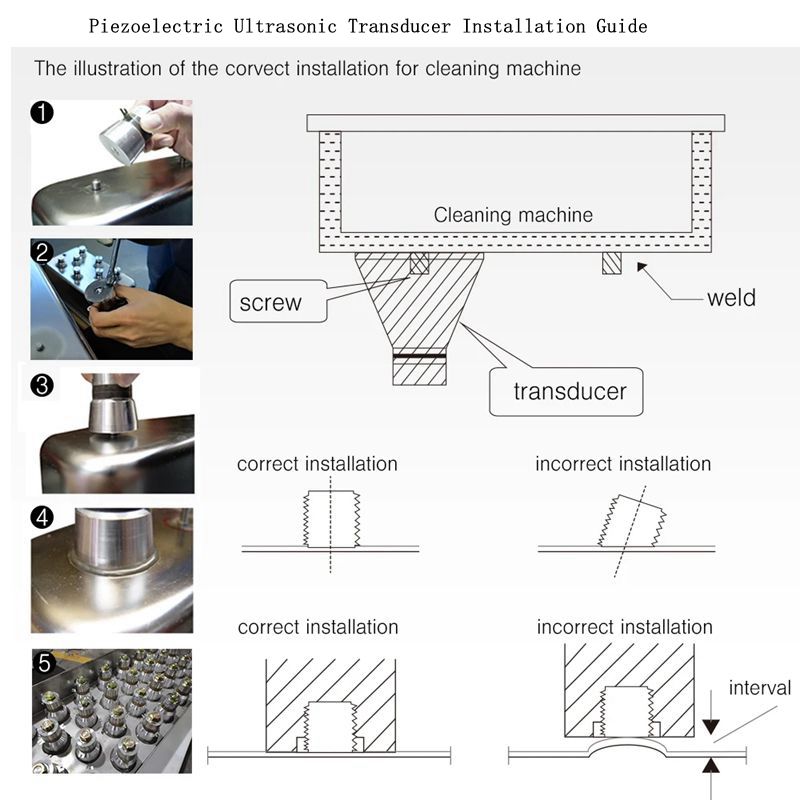

• 1 × Stainless Steel Welding Stud Bolt for Installation

🔹Why Choose SIWEEP Ultrasonic Transducers?

• Reliable Ultrasonic Energy Conversion
  Piezoelectric technology provides efficient conversion of electrical energy into mechanical ultrasonic vibration.
• Multiple Specifications
  Different frequency and power configurations allow customers to select a transducer suitable for their specific ultrasonic system.
• Suitable for Retrofit Applications
  Designed for replacing existing ultrasonic transducers in cleaning tanks and other equipment.
• Flexible Integration
  Suitable for both new equipment and customized ultrasonic systems.
• Industrial Applications
  Designed for ultrasonic cleaning, industrial processing, and other applications requiring reliable ultrasonic energy generation.

🔹Frequently Asked Questions

Q1: What is an ultrasonic transducer?

A: An ultrasonic transducer is a key component that converts electrical energy into high-frequency mechanical vibrations through piezoelectric ceramic elements. In ultrasonic cleaning systems, it generates ultrasonic waves that create cavitation bubbles for effective cleaning performance.

Q2: What is the function of piezoelectric ceramic in an ultrasonic transducer?

A: Piezoelectric ceramic elements convert electrical energy into mechanical vibration efficiently. High-quality piezoelectric ceramics help ensure stable ultrasonic output, strong cavitation performance, and reliable long-term operation.

Q3: What is included with the ultrasonic transducer?

A: Each ultrasonic transducer package includes one industrial ultrasonic transducer assembly and one welding stud bolt for installation. The included stud specification may vary depending on the transducer model and installation requirements.

Q4: What frequencies are available for SIWEEP ultrasonic transducers?

A: SIWEEP ultrasonic transducers are available in multiple frequencies, including 28kHz, 40kHz, 68kHz, 100kHz, and 120kHz. Lower frequencies provide stronger cleaning power for heavy-duty applications, while higher frequencies are suitable for precision cleaning.

Q5: How do I choose the right ultrasonic transducer frequency?

A: The ideal frequency depends on the cleaning application and part requirements. 28kHz and 40kHz are commonly used for industrial cleaning of larger or heavily contaminated parts, while higher frequencies such as 68kHz, 100kHz, and 120kHz are better suited for delicate and precision components.

Q6: Can these ultrasonic transducers be used for custom ultrasonic cleaning tanks?

A: Yes. SIWEEP ultrasonic transducers are designed for integration into custom ultrasonic cleaning systems. Selection depends on tank size, required ultrasonic power, operating frequency, and installation method.

Q7: How long do ultrasonic transducers typically last?

A: With proper installation and operation, industrial ultrasonic transducers can provide long service life. Actual lifespan depends on operating conditions, cleaning environment, power settings, and maintenance practices.

Q8: Can I replace existing ultrasonic cleaning transducers with SIWEEP models?

A: Yes. SIWEEP transducers can be used as replacement components for many ultrasonic cleaning systems. Please confirm the required frequency, power rating, dimensions, and installation configuration before ordering.

Q9: What applications are ultrasonic transducers commonly used for?

A: Ultrasonic transducers are widely used in industrial cleaning applications, including automotive parts cleaning, electronics cleaning, precision component cleaning, medical equipment cleaning, and manufacturing processes.

Q10: Does SIWEEP provide customized ultrasonic transducer solutions?

A: Yes. SIWEEP can provide customized ultrasonic transducer solutions based on frequency, power requirements, mounting configuration, tank design, and specific cleaning applications.
