Industrial Ultrasonic Cleaning Machine Overview
The SIWEEP Industrial Ultrasonic Cleaning Machine features an integrated circulating filtration and oil-skimming system designed to keep the cleaning solution cleaner during operation. It helps remove suspended contaminants, oil, and grease from the solution, extending solution life and reducing the need for frequent replacement.
Designed for heavy-duty parts cleaning in manufacturing, automotive, machinery, metalworking, and maintenance applications, the machine uses powerful ultrasonic cleaning and heating to remove oil, grease, dirt, carbon, and other contaminants from industrial parts.
Available in 37.5L to 360L capacities with 28 kHz or 40 kHz frequencies, it helps reduce water and cleaning-solution consumption, minimize wastewater, and support more resource-efficient industrial cleaning.

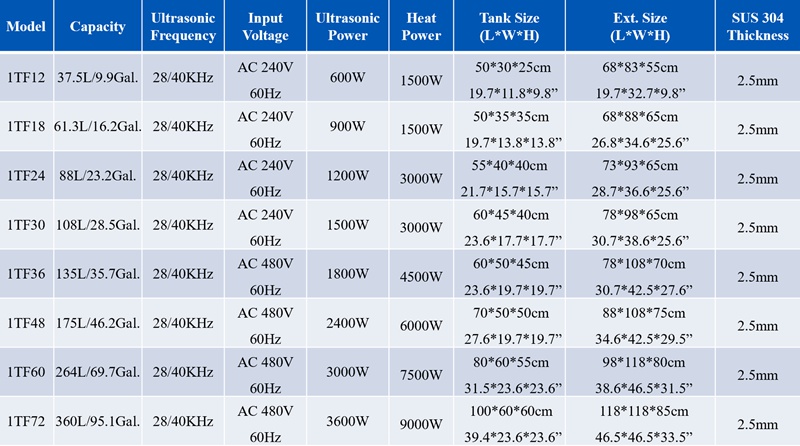

Technical Specifications
Key Features
- Integrated Circulating Filtration — Continuously filters the cleaning solution to help remove suspended dirt and particles.
- Oil-Skimming System — Helps remove floating oil and grease from the cleaning solution during operation.
- Powerful Ultrasonic Cleaning — Uses 28 kHz or 40 kHz ultrasonic waves to remove oil, grease, carbon, dirt, and other contaminants.
- Built-In Heating — Heating helps improve cleaning performance for many industrial parts and contaminants.
- Multiple Tank Capacities — Available in approximately 37.5L to 360L capacities for different industrial cleaning requirements.
- Digital Time and Temperature Control — Allows operators to set and monitor cleaning parameters for consistent results.
- Industrial-Grade Construction — Designed for demanding industrial parts cleaning and repeated operation.
- Reduced Water and Solution Consumption — Filtration helps extend cleaning-solution life, reduce solution replacement, and minimize wastewater.
Industrial Ultrasonic Cleaning Machine with Filtration
SIWEEP Industrial Ultrasonic Cleaning Machine features an integrated circulating filtration and oil-skimming system that helps keep the cleaning solution cleaner during operation. The filtration system continuously removes suspended dirt and particles, while the oil-skimming function helps remove floating oil and grease.
By maintaining cleaner cleaning solution, the system helps extend solution life, reduce the frequency of solution replacement, and lower water and cleaning-solution consumption. This makes the machine well suited for repeated industrial parts cleaning where cleaning efficiency, solution management, and reduced wastewater are important.
How Industrial Ultrasonic Cleaning Works
SIWEEP Industrial Ultrasonic Cleaning Machine uses high-frequency ultrasonic waves to create microscopic bubbles throughout the cleaning solution. When these bubbles rapidly collapse, they produce powerful microscopic cleaning action that helps loosen and remove oil, grease, dirt, carbon, and other contaminants from part surfaces.
The ultrasonic cleaning process reaches recessed areas, holes, grooves, channels, and other hard-to-reach surfaces that may be difficult to clean with conventional methods. Heating can further improve cleaning performance for many industrial parts and contaminants.
During operation, the circulating filtration system helps remove suspended particles from the cleaning solution, while the oil-skimming system helps remove floating oil and grease. This allows the cleaning solution to remain cleaner during repeated industrial parts cleaning.
Industrial Ultrasonic Cleaning Machine Applications
SIWEEP Industrial Ultrasonic Cleaning Machine with circulating filtration and oil skimming is designed for demanding industrial parts cleaning applications where oil, grease, dirt, carbon, and machining residues can accumulate in the cleaning solution. The filtration system helps maintain cleaner solution during repeated cleaning, making the machine particularly suitable for industrial operations that require continuous or frequent parts cleaning.
- Automotive Parts Cleaning — Clean engine parts, transmission components, gears, valves, and other automotive parts while filtration helps manage oil, grease, and suspended contaminants in the cleaning solution.
- Metal Parts Cleaning — Remove oil, grease, metal particles, and machining residues from machined and fabricated metal components while circulating filtration helps keep the solution cleaner.
- Machine Parts Cleaning — Clean hydraulic components, pumps, fittings, mechanical parts, and other machinery components with ultrasonic cleaning and solution filtration.
- Tools and Molds Cleaning — Remove oil, grease, carbon, and production residues from industrial tools, molds, dies, and fixtures, with oil skimming helping remove floating oil from the cleaning solution.
- Precision Parts Cleaning — Clean components with holes, grooves, channels, and recessed surfaces while the filtration system helps remove suspended particles released during cleaning.
- Manufacturing Parts Cleaning — Suitable for repeated cleaning of production components before assembly, inspection, coating, or further processing, helping reduce cleaning-solution replacement.
- Maintenance and Repair Cleaning — Clean heavily contaminated equipment parts during maintenance, refurbishment, and repair operations, with filtration helping extend cleaning-solution life during repeated use.
The combination of ultrasonic cleaning, heating, circulating filtration, and oil skimming makes SIWEEP Industrial Ultrasonic Cleaning Machine suitable for demanding parts cleaning operations while helping reduce solution consumption and wastewater.
What Can an Industrial Ultrasonic Cleaning Machine Clean?
SIWEEP Industrial Ultrasonic Cleaning Machine is designed to clean a wide range of metal, mechanical, and industrial components contaminated with oil, grease, dirt, carbon, and machining residues. The integrated circulating filtration and oil-skimming system helps remove suspended particles and floating oil from the cleaning solution, making the machine especially suitable for heavily contaminated parts and repeated cleaning operations.
- Engine and Automotive Components — Clean engine parts, transmission components, gears, valves, and other automotive parts contaminated with oil and grease.
- Machined Metal Parts — Remove cutting fluids, machining residues, metal particles, oil, and grease from metal components.
- Hydraulic and Mechanical Components — Clean pumps, valves, fittings, hydraulic components, bearings, and other machinery parts.
- Tools, Dies, and Molds — Remove grease, carbon, dirt, and production residues from industrial tools, molds, dies, and fixtures.
- Precision Components — Clean parts with holes, grooves, channels, and recessed surfaces that are difficult to reach with conventional cleaning methods.
- Heavily Contaminated Parts — The filtration and oil-skimming system helps manage oil, grease, and suspended contaminants released during cleaning.
- Parts for Repeated Cleaning — Circulating filtration helps maintain cleaner solution for longer, making the machine suitable for frequent or high-volume industrial parts cleaning.
The combination of ultrasonic cleaning and continuous solution filtration helps maintain consistent cleaning performance while extending cleaning-solution life and reducing the need for frequent solution replacement.
Ultrasonic Cleaning Frequency and Heating
SIWEEP Industrial Ultrasonic Cleaning Machine is available with 28 kHz or 40 kHz ultrasonic frequencies to accommodate different industrial parts cleaning requirements. Frequency selection can be based on part type, surface condition, contaminant level, and desired cleaning performance.
The built-in heating system helps improve cleaning performance by bringing the cleaning solution to the appropriate operating temperature. Combined with ultrasonic cleaning, circulating filtration, and oil skimming, the heated system supports efficient and consistent cleaning during repeated industrial cleaning operations.
| Frequency | Typical Applications |
|---|---|
| 28 kHz | Suitable for heavy-duty cleaning and removing stubborn oil, grease, carbon, and machining residues from industrial parts. |
| 40 kHz | Suitable for general-purpose industrial parts cleaning and components requiring a finer cleaning action. |
Industrial Ultrasonic Cleaning Machine Capacities
SIWEEP Industrial Ultrasonic Cleaning Machine is available in multiple tank capacities from approximately 37.5L to 360L. Each model combines ultrasonic cleaning with circulating filtration and oil skimming to help maintain cleaner cleaning solution during repeated industrial parts cleaning.
The wide capacity range allows customers to select an industrial ultrasonic cleaning machine based on part dimensions, cleaning volume, and production requirements. The integrated filtration and oil-skimming system helps extend cleaning-solution life and reduce the frequency of solution replacement.
| Tank Capacity | Typical Ultrasonic Parts Cleaning Applications |
|---|---|
| 37.5L–61.3L | Automotive parts, tools, metal components, and small to medium industrial parts. |
| 88L–135L | Machine components, manufacturing parts, molds, and medium-sized industrial assemblies. |
| 175L–264L | Large automotive parts, industrial components, tooling, and heavy-duty parts cleaning. |
| 360L | Large industrial components, oversized parts, and high-volume batch cleaning. |
Environmental Benefits of Filtration
The integrated filtration and oil-skimming system helps keep the cleaning solution cleaner during repeated industrial cleaning operations. By removing suspended particles, oil, and grease, the system can extend cleaning-solution life and reduce the frequency of solution replacement.
This helps reduce water and cleaning-solution consumption, minimize wastewater, and lower operating waste, making SIWEEP Industrial Ultrasonic Cleaning Machine a more resource-efficient solution for industrial parts cleaning.
How to Use an Industrial Ultrasonic Cleaning Machine
Using an ultrasonic cleaning machine involves selecting the appropriate cleaning solution, temperature, ultrasonic frequency, and cleaning time for the parts and contaminants. Follow these general steps:
- Fill the Cleaning Tank — Add a suitable ultrasonic cleaning solution to the tank according to the recommended operating level.
- Preheat the Solution — Set the desired cleaning temperature and allow the built-in heater to bring the solution to the appropriate temperature.
- Load the Parts — Place the parts securely in the cleaning basket. Avoid overcrowding the tank to allow ultrasonic energy and cleaning solution to reach all surfaces.
- Set the Cleaning Parameters — Select the appropriate cleaning time and ultrasonic frequency based on the part material, contamination, and cleaning requirements.
- Start Ultrasonic Cleaning — Activate the ultrasonic cleaning cycle to remove oil, grease, dirt, carbon, and other contaminants from the parts.
- Run Filtration and Oil Skimming — The circulating filtration system helps remove suspended particles, while oil skimming helps remove floating oil and grease from the cleaning solution.
- Remove and Inspect the Parts — After the cleaning cycle, remove the parts and inspect them to confirm the required cleaning results.
- Maintain the Cleaning Solution — Use the filtration system regularly during repeated cleaning operations to help extend solution life and reduce the need for frequent solution replacement.
This operating process combines ultrasonic cleaning, heating, circulating filtration, and oil skimming for efficient and repeatable industrial parts cleaning.
Tips for Best Cleaning Results
Follow these practical tips to achieve better cleaning results with your SIWEEP ultrasonic cleaning machine.
- Choose the Right Ultrasonic Frequency – Use 28 kHz for larger parts and heavy contamination such as oil, grease, and carbon deposits. Choose 40 kHz for general-purpose parts cleaning and more controlled cavitation.
- Use the Appropriate Cleaning Solution – Select a cleaning solution compatible with the part material and the contaminants being removed. The right solution can significantly improve cleaning performance.
- Set the Proper Temperature – Heated cleaning can improve the removal of oil, grease, and other contaminants. Adjust the temperature according to the cleaning solution, part material, and application.
- Avoid Overloading the Basket – Arrange parts with enough space between them so ultrasonic energy and cleaning solution can reach the surfaces effectively.
- Fully Immerse the Parts – Make sure the parts are adequately covered by the cleaning solution and positioned properly inside the cleaning basket.
- Use the Appropriate Cleaning Time – Start with a shorter cleaning cycle and increase the time when necessary based on the contamination level and cleaning results.
- Keep the Cleaning Solution Clean – Replace or filter the solution when it becomes heavily contaminated. Excessive debris and contaminants can reduce cleaning effectiveness.
- Rinse and Dry After Cleaning – Rinse parts when necessary to remove remaining cleaning solution and loosened contaminants, then dry them thoroughly to prepare them for further processing or storage.
- Test Before Full-Scale Cleaning – For new parts, materials, or cleaning solutions, test a small batch first to confirm compatibility and achieve the desired cleaning results.
For demanding industrial parts cleaning, the best results typically come from balancing ultrasonic frequency, cleaning solution, temperature, cleaning time, and tank loading rather than relying on ultrasonic power alone.
What’s Included in the Package?
The SIWEEP Industrial Ultrasonic Cleaner package includes the essential equipment and accessories needed for setup, operation, and routine industrial parts cleaning.
- 1 × SIWEEP Industrial Ultrasonic Cleaner – Professional industrial ultrasonic cleaning machine with the selected tank capacity, ultrasonic frequency, heating, and digital control configuration.
- 1 × Heavy-Duty Stainless Steel Cleaning Basket – Durable stainless steel basket designed for convenient loading, handling, and removal of automotive parts, metal components, tools, and other items being cleaned.
- 1 × Stainless Steel Soundproof Lid – Stainless steel lid designed to help reduce operating noise and limit cleaning solution evaporation during the ultrasonic cleaning cycle.
- 1 × Industrial Ultrasonic Generator System – High-performance ultrasonic generator designed to provide stable ultrasonic power and consistent cavitation for reliable parts cleaning.
- 1 × Power Cord – Power connection supplied according to the selected equipment configuration and applicable regional electrical requirements.
- 1 × Professional User Manual – Includes essential information for equipment setup, operation, cleaning procedures, safety precautions, and routine maintenance.
Note: Package contents may vary depending on the selected model, tank capacity, electrical configuration, and accessories. Please refer to the specific product configuration or contact SIWEEP for details.
Why Choose SIWEEP Industrial Ultrasonic Cleaning Machine?
SIWEEP Industrial Ultrasonic Cleaning Machine is designed for demanding industrial parts cleaning where cleaning performance, solution management, and reliable operation are important.
- Integrated Filtration and Oil Skimming — Helps remove suspended contaminants, oil, and grease from the cleaning solution, extending solution life and reducing solution replacement.
- Powerful Ultrasonic Cleaning — 28 kHz and 40 kHz options provide effective cleaning for different industrial parts and contamination levels.
- Multiple Capacity Options — Available from approximately 37.5L to 360L to accommodate different part sizes and cleaning volumes.
- Built-In Heating — Helps maintain the appropriate cleaning temperature for more effective parts cleaning.
- Designed for Repeated Cleaning — Circulating filtration helps maintain cleaner solution during frequent or high-volume industrial cleaning operations.
- Reduced Water and Solution Consumption — Longer solution life can help reduce water use, wastewater, and operating waste.
- Industrial-Grade Equipment — Built for demanding manufacturing, automotive, metalworking, maintenance, and other industrial cleaning applications.
- Technical and After-Sales Support – SIWEEP provides product selection assistance, operating guidance, troubleshooting, replacement parts, and technical support for ultrasonic cleaning equipment.
- Professional Ultrasonic Cleaning Solutions – SIWEEP provides ultrasonic cleaning equipment for automotive, manufacturing, maintenance, electronics, precision parts, and other professional applications.
Frequently Asked Questions
Q: What is an industrial ultrasonic cleaning machine?
A: An industrial ultrasonic cleaning machine uses ultrasonic cavitation in a liquid cleaning solution to help remove oil, grease, dirt, carbon deposits, machining residues, and other contaminants from industrial parts and components. SIWEEP models also feature circulating filtration and oil skimming to help maintain cleaner cleaning solution during operation.
Q: What can an industrial ultrasonic cleaning machine clean?
A: SIWEEP industrial ultrasonic cleaning machines can be used for automotive parts, metal components, machine parts, hydraulic components, tools, molds, bearings, gears, valves, precision parts, and other industrial components.
Q: Does the industrial ultrasonic cleaning machine have a filtration system?
A: Yes. SIWEEP industrial ultrasonic cleaning machines feature an integrated circulating filtration system that helps remove suspended dirt and particles from the cleaning solution. The oil-skimming system also helps remove floating oil and grease during operation.
Q: What are the benefits of filtration in an ultrasonic cleaning machine?
A: Filtration helps keep the cleaning solution cleaner during repeated cleaning operations. By removing suspended contaminants, oil, and grease, the system can extend cleaning-solution life, reduce the frequency of solution replacement, lower water and solution consumption, and minimize wastewater.
Q: Can an industrial ultrasonic cleaning machine remove oil and grease?
A: Yes. With an appropriate cleaning solution, ultrasonic cavitation and heating help loosen and remove oil, grease, lubricants, and other industrial residues. The integrated oil-skimming system also helps remove floating oil from the cleaning solution during operation.
Q: What frequency should I choose for an industrial ultrasonic cleaning machine?
A: 28 kHz is generally suitable for larger parts and heavier contamination such as oil, grease, and carbon deposits. 40 kHz is a versatile option for general-purpose industrial parts cleaning and applications requiring more controlled cavitation.
Q: What tank size do I need for an industrial ultrasonic cleaning machine?
A: Tank size should be selected according to the dimensions and quantity of the parts being cleaned. SIWEEP industrial ultrasonic cleaning machines are available from approximately 37.5L to 360L for different industrial cleaning requirements and batch sizes.
Q: How hot can a SIWEEP industrial ultrasonic cleaning machine get?
A: SIWEEP models feature adjustable heating up to 80°C / 176°F, depending on the specific configuration. Heating can help improve cleaning performance for many types of industrial contaminants.
Q: How long does industrial ultrasonic cleaning take?
A: Cleaning time depends on the part material, contaminant type, contamination level, cleaning solution, temperature, and ultrasonic frequency. Lightly contaminated parts may require shorter cycles, while heavily contaminated parts may require additional cleaning time.
Q: Can an industrial ultrasonic cleaning machine clean complex parts and small areas?
A: Yes. Ultrasonic cavitation can reach grooves, cavities, holes, edges, channels, and other difficult-to-reach surfaces that may be difficult to clean effectively with conventional methods.
Q: Can the cleaning solution be reused?
A: The circulating filtration and oil-skimming systems help maintain cleaning solution quality by removing suspended contaminants and floating oil. This can extend solution life and reduce the need for frequent solution replacement, although replacement intervals depend on the cleaning workload and contamination level.
Q: What cleaning solution should I use in an industrial ultrasonic cleaning machine?
A: Use a cleaning solution appropriate for both the part material and the contaminants being removed. The solution should be suitable for ultrasonic cleaning and used according to the cleaning solution manufacturer’s instructions.
For detailed operating instructions and technical information, please refer to the Industrial Ultrasonic Cleaner User Manual.
Need a Custom Solution?
If you require a customized solution to meet your specific application, size, power, frequency, or other technical requirements, please contact us at [email protected]. Our team can discuss your requirements and help determine a suitable solution.
